Name: Amped Outdoors 3 Bank 12V/24V On-Board Battery Charger
SKU: AO-0328M
Availability: InStock

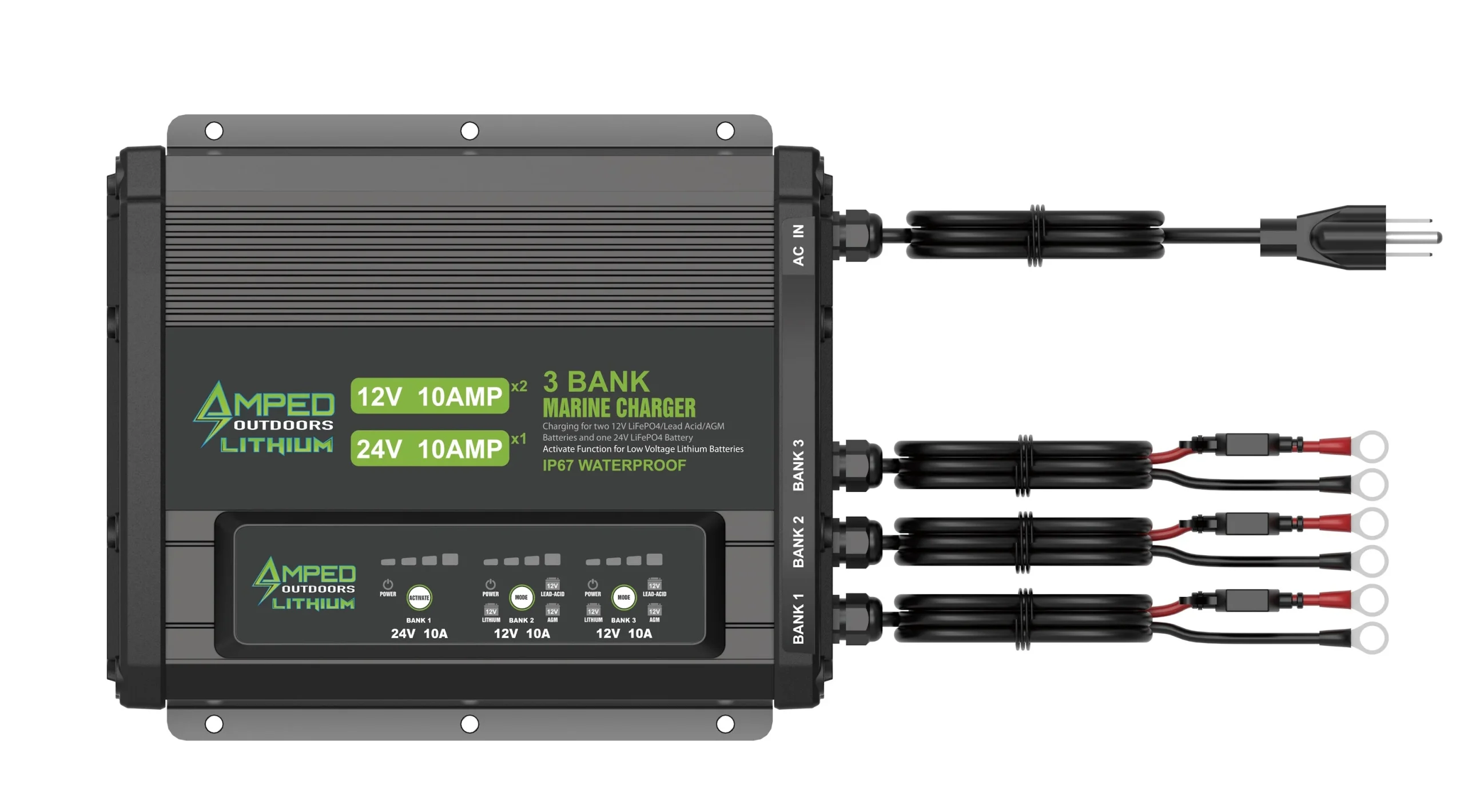

Amped Outdoors 3 Bank 12V/24V On-Board Battery Charger

Free shipping on orders over $30.

The Amped Outdoors 3 Bank 12V/24V On-Board Battery Charger will allow you to charge a 24V Amped Outdoors LiFePO4 Battery (or multiple in parallel) while also charging 2 12V batteries. The 12V charging banks have a selectable Lead Acid, AGM and Lithium battery charging mode. Each bank is rated for 10A max output.

Model: AO-0328M

105-125V AC, 60Hz

Power & Battery Type & Charging Status LED Indicators

Wake Up Function for Low Voltage of Lithium Battery (Press the mode button on the bank panel for 3-5 seconds to start this function)

14.1V-14.4V for 12V Lead Acid Battery & 14.4V-14.7V for 12V AGM / LiFePO4 Lithium Battery & 28.8V-29.4V for 24V Lithium Battery & 43.0V-44.2V for 36V Lithium Battery

Aluminium stretched plate and waterproof cooling fan at the bottom of product for better heat dissipation

Filled with pure epoxy resin for high waterproof level IP67

Short-circuit Protection & Reverse Connection Protection & Overcharge Protection & Overtemp Protection

-10°C~40°C

25°C

5%~95%

Product Name	1-Bank Marine Charger with M8 Ring	3-Bank Marine Charger with M8 Ring	3-Bank Marine Charger with M8 Ring	4-Bank Marine Charger with M8 Ring
Model	AO-0264M	AO-0328M	AO-0329M	AO-0330M
Input
Output	1*16V/10A	2*12V/10A +24V/10A	2*12V/10A +36V/10A	4*12V/10A
Product Size	16624599mm 6.5×9.6×3.9″	30424599mm 12×9.6×3.9″	36124599mm 14.2×9.6×3.9″	30424599mm 12×9.6×3.9″
Charging Battery Type	16V LiFePO4 Battery	12V LiFePO4/Wet/ AGM; 24V LiFePO4 Battery	12V LiFePO4/Wet/AGM; 36V LiFePO4 Battery	12V LiFePO4/Wet/AGM
LED Indicators
Activate Function
Full Cut-off Voltage	18V-18.25V
Cooling Type
Ingress Protection
Circuit Protection
Working Temperature Range
Nominal Working Temperature
Relative Humidity
