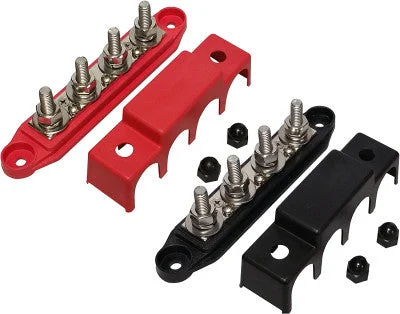

Hefty 4-post busbars have 3 additional 8 screws for small connections, and come with the pictured matching cover. Available in red and black. We get these from a major manufacturer of electrical connections, and they are built to last. For applications within the 250A rating, these are an excellent choice.
- Maximum current: 250 A
- Maximum voltage: 48 VDC
- Stud length: 1-1/8″ (30mm)
- Terminal screw size: 8
- Mounting screws: 10 (not included)
- Dimensions, with cover: 6.6″ L x 1.4″ W x 2.0″ H (168 x 35 x 50 mm)
- Mounting center: 5.7″ (145mm)
- Base: Glass-filled nylon
- Bar: Nickel plated brass
- Studs, nuts, washers: Stainless steel
- Cover: Nylon
